Table of Contents
- Tools and Equipment Required for Fitted Bedroom Furniture Installation
- Measuring Your Space Accurately
- Preparing the Room and Walls
- Assembling the Cabinet Carcass
- How to Scribe Wardrobe Panels to Uneven Walls
- Fixing Wardrobes to Plasterboard Walls
- Installing Sliding Door Tracks, Hinges and Internal Storage
- Post-Installation Adjustments and Final Checks
Last Updated: August 15, 2026

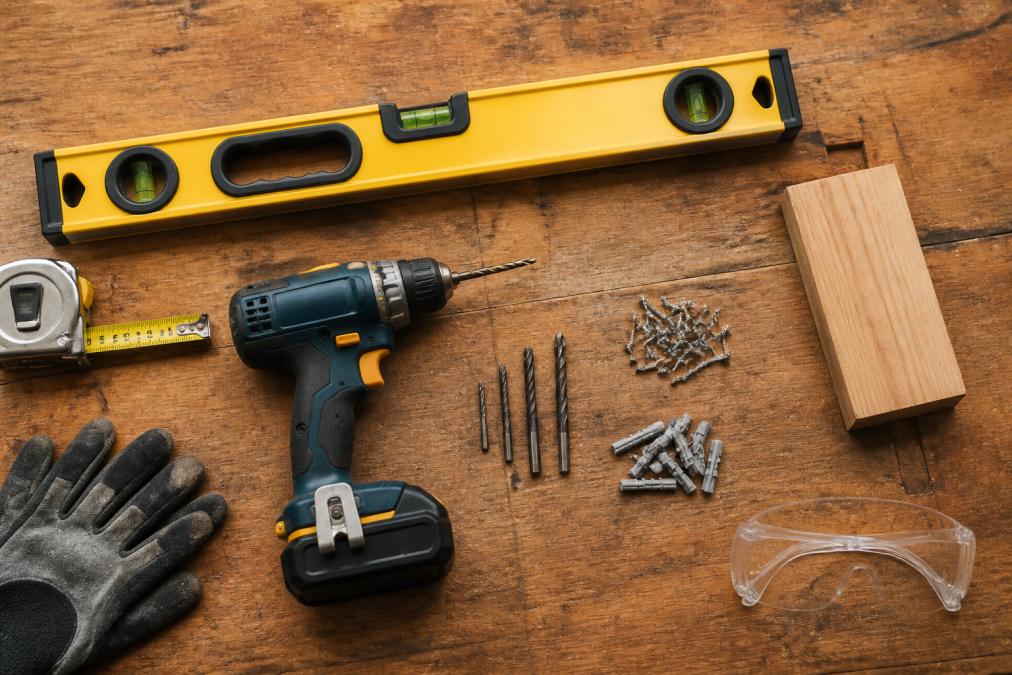

Tools and Equipment Required for Fitted Bedroom Furniture Installation
Installing fitted bedroom furniture requires the right tools. A proper 600mm or 900mm aluminium spirit level is essential, you’ll use it constantly to check that your carcass sits plumb and shelves won’t sag. You’ll also need a measuring tape (at least 5 metres), a cordless drill with drill bits, a countersink bit, and driver bits for various screw types. A jigsaw or circular saw becomes essential for cutting panels to fit awkward spaces.
Wall fixings are critical, especially on plasterboard. Depending on your wall type, you might need cavity wall anchors, toggle bolts, or heavy-duty plasterboard fixings, these prevent your wardrobe pulling away from the wall under load. A stud finder helps identify solid timber behind plasterboard, which is always preferable for fixing.
For scribing, you’ll need a scribing block (a flat piece of material that transfers the profile of an uneven wall onto your panel) and a sharp pencil or marking knife. Some installers use a profile gauge for complex curves.
Wear safety glasses when drilling or cutting, and use a dust mask when working with MDF or plywood. A headtorch makes it easier to see in corners and recesses. Clamps or a workbench hold panels steady while you work. Many installers use a Kreg jig for pocket-hole joinery, which creates strong joints without visible fasteners.
Measuring Your Space Accurately
Measuring accurately is where most installations either succeed or fail. Walls aren’t plumb, floors aren’t level, and your measurements must capture these realities.
Start by measuring the width of your space at three heights: bottom, middle, and top. Do the same for depth and height at multiple points along the wall, especially in older properties where floors have settled unevenly. Check for plumb using your spirit level against the walls and mark where the wall deviates most.
Document the location of obstacles: radiators, skirting boards, electrical outlets, light switches, and pipes. Measure their exact positions from fixed reference points. Use a datum line, a level line marked at a consistent height across the wall, typically 1 metre from the floor, as your reference point for everything else.
For awkward spaces like understairs alcoves or rooms with sloping ceilings, sketch the space roughly to scale and measure the slope angle if possible. The golden rule: measure more than you think you need. Extra measurements take seconds; discovering mid-installation that a critical dimension was wrong costs hours.
Preparing the Room and Walls
Before any carcass arrives, assess your walls honestly. Check for damp, if there’s any sign of moisture, discolouration, soft plaster, or musty smell, sort that before you install anything. Fitted furniture traps moisture against walls, accelerating damage.
Remove skirting boards if they’ll interfere with your installation and mark their positions for reinstallation. Fill any large holes or cracks in the walls. You don’t need perfect finish, but you need a stable surface for fixings to grip properly.
Clear the floor and protect it with cardboard or a dust sheet. Ensure your room temperature is stable, extreme swings can cause movement in MDF or plywood panels. Identify where services run using a cable detector (under £15) to prevent drilling into cables or pipes.
Assembling the Cabinet Carcass
The carcass is the structural skeleton of your fitted bedroom furniture. Start by laying out all your panels and checking that they match your cutting list exactly. Measure the diagonals, they should be equal if the carcass is truly square.
Use pocket-hole joinery (Kreg jig method) or dowel joints to assemble the main frame. Both methods create strong, invisible joints. Ensure vertical supports (stiles) are truly plumb as you assemble, using your spirit level constantly. Horizontal shelves and dividers should be checked for level as you install them, use packers (thin shims) under support points to achieve true level.
Reinforce the back of the carcass with a backing panel or batten system to prevent racking and provide crucial fixing points for wall attachment. Check internal dimensions as you build, doors and drawer fronts need consistent 3mm gaps all around.
How to Scribe Wardrobe Panels to Uneven Walls
Scribing allows fitted furniture to sit tight against walls that aren’t straight. Position your carcass in its final location, shimmed level and plumb. Place the panel you’re going to scribe against the wall, holding it slightly away from it (typically 10-15mm proud).
Set your scribing block to the maximum gap between the panel and wall. Hold the block flat against the wall and drag it down the entire height of the panel, keeping the pencil in contact with the panel. This transfers the wall’s profile onto the panel. Use a jigsaw to cut along this line, taking your time for smooth cuts.
Start with a test scribe on scrap material. After scribing, fit the panel back against the carcass and check the wall fit, there should be minimal gaps. Any remaining gaps under 3mm can be filled with flexible sealant.

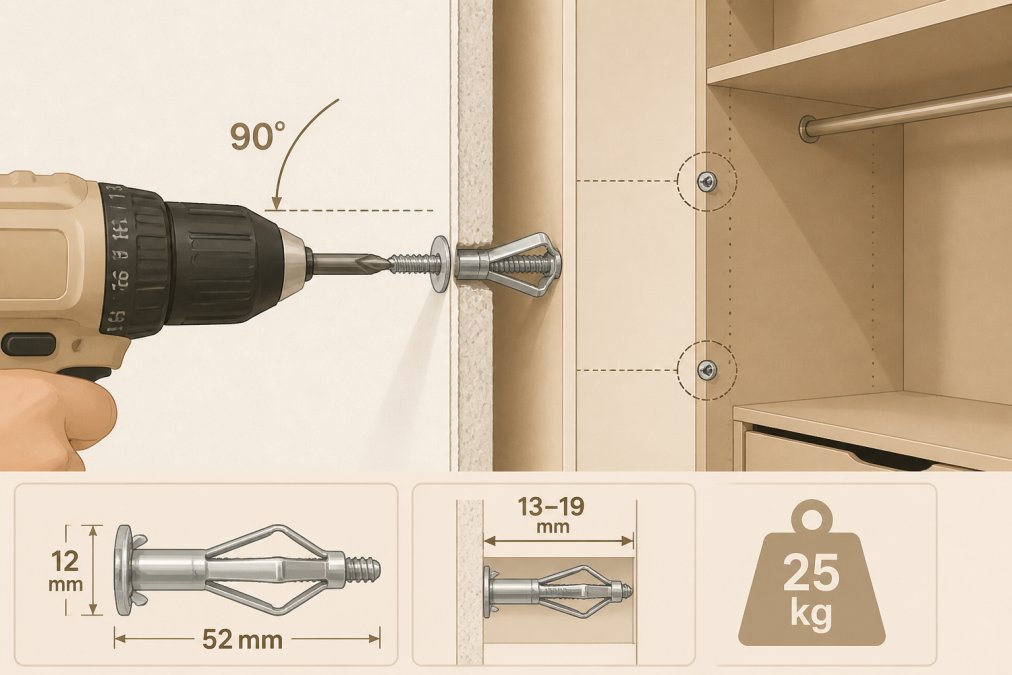

Fixing Wardrobes to Plasterboard Walls
Wall fixings prevent your fitted bedroom furniture from pulling away from the wall under load. Identify stud locations first using a stud finder. If you can fix into studs, do so, use 8mm coach bolts or heavy-duty wood screws directly into the timber.
When you can’t hit studs, use proper plasterboard fixings like cavity wall anchors (toggle bolts) or heavy-duty plasterboard anchors. For a typical fitted wardrobe, you’ll need fixings at multiple points: top, middle, and bottom of the carcass, spaced no more than 600mm apart. A wardrobe 2 metres tall needs at least 4-5 fixing points per side, minimum.
Drill pilot holes at the correct diameter for your fixings. Use a spirit level to ensure fixing holes are truly vertical. Install fixings with appropriate washers to spread the load. After all fixings are installed, check that the wardrobe is pulled tight against the wall with no gaps between the back panel and wall.
Installing Sliding Door Tracks, Hinges and Internal Storage
Sliding door tracks must be perfectly level, even a 2mm slope will cause doors to slide on their own. Use your spirit level on the track itself and shim as needed before fixing.
For hinged doors, standard hinge spacing is 100mm from the top and bottom, with a third hinge at the midpoint for doors over 1.5 metres tall. Mark hinge positions using a template for consistency. Hinge mortises must be cut to exact depth, too shallow and the hinge won’t sit flush; too deep and the door will be proud of the carcass.
Internal shelving and drawer runners need to be level and square. Shelf pins should be positioned at consistent vertical spacing, typically 32mm apart. Ball-bearing drawer runners are smoother and quieter than plastic runners and justify the extra cost for frequently-used drawers.
Test all doors and drawers through their full range of motion before finishing. Doors should open and close smoothly without binding, and drawers should slide fully open and close without jamming.
Post-Installation Adjustments and Final Checks
Check door gaps with a straight edge, the gap between doors should be consistent across their entire height. Most hinges have three adjustment directions: in-out (perpendicular to the door), up-down (vertical), and tilt (rotation). Use all three to dial in perfect alignment.
Verify that all shelves are level using your spirit level placed front-to-back and side-to-side. If any shelf slopes, re-shim the support points. Ensure all internal components work properly, drawers should slide smoothly and soft-close mechanisms should engage without slamming.
Fill any gaps between the wardrobe and walls with flexible sealant if needed. Check that all visible screw heads are properly countersunk and covered. Stand back and look at the installation as a whole, does it look level and professional?
Installing fitted bedroom furniture is achievable for someone with basic DIY experience and the right tools. The difference between a good result and an exceptional one comes down to patience during measurement and scribing, and meticulous attention to detail during final adjustments. If you’re uncertain about any aspect, particularly wall fixings or scribing complex profiles, it’s worth consulting a professional. Finest Furniture Studio offers a free design visit where their team can assess your space and advise on the best approach for your specific room. Their 10-year warranty on wardrobes means you’re protected against manufacturing defects, and their transparent pricing ensures no surprises. Book a consultation to explore how bespoke fitted solutions can transform your bedroom space.
Frequently Asked Questions
What tools do I need to install fitted bedroom furniture?
Essential tools include a spirit level, measuring tape, cordless drill with masonry and wood bits, screwdrivers (Phillips and flat-head), a scribing block, a plumb line, wall anchors suitable for plasterboard, and a pencil. A jigsaw or circular saw helps with cutting panels to fit around obstacles. For professional results, add a stud finder to locate wall framing and a laser level for large installations. Most homeowners already own basic hand tools; hiring or borrowing specialist equipment like a laser level is cost-effective for one-off projects.
How do you scribe fitted furniture to uneven walls?
Scribing compensates for walls that aren't perfectly straight. Use a scribing block (a flat piece of wood or plastic) and a pencil to trace the wall's contours onto the wardrobe panel. Position the scribing block against the wall and draw along it as you move down the panel, transferring the wall's shape onto the furniture. Mark the highest point and use a jigsaw to cut along the scribed line carefully. Sand the cut edge smooth, then test the fit. This technique ensures bespoke wardrobes sit flush against walls, even in older properties with uneven plasterwork.
Is it difficult to install fitted bedroom furniture yourself?
DIY installation is achievable for confident homeowners with basic carpentry skills and the right tools, but it requires precision and patience. Measuring accurately, ensuring the carcass is level and plumb, and securing it properly to walls, especially plasterboard, are critical steps that determine longevity and safety. Mistakes in wall fixings or assembly can compromise structural integrity and void warranties. Many homeowners choose professional installation to avoid errors, save time, and guarantee the warranty applies. If you attempt DIY, allow several days and follow the manufacturer's sequence carefully.
Do I need to comply with building regulations for fitted furniture?
Fitted bedroom furniture itself is not typically subject to building regulations in the same way structural work is. However, if your installation involves electrical work (for lighting or sockets), structural modifications, or fire safety considerations in shared buildings, regulations may apply. Always check with your local building control authority if your project involves significant structural changes. Professional installers are familiar with these requirements and ensure compliance, which protects both safety and your property's value.
